Utility Self Locking "SL" Connecting Pins
All Components
Click Image to Enlarge & View More
Economy Connecting Pins
Part # 277B84

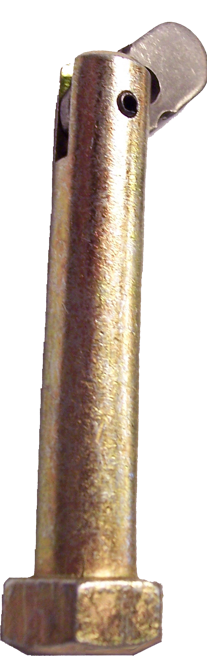

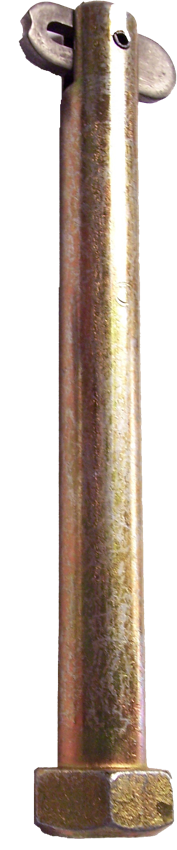

Type "SL" connecting pins are a Bell System design and feature a swivel lock which is held in place by a spring loaded detent ball. They are advantageous over using a pin and separate clip or hair pin arrangement for locking. Actual dimension (working length) of the distance from under the head to the swivel lock is 1/8" longer than nominal dimension. The pin bodies and components are zinc plated per ASTM B633 to protect them from rust and corrosion.
| Type "SL" Sizes | |||
| 1/2" x 1" | 1/2" x 4" | 5/8" x 1" | 5/8" x 4" |
| 1/2" x 1-1/2" | 1/2" x 4-1/2" | 5/8" x 1-1/2" | 5/8" x 4-1/2" |
| 1/2" x 2" | 1/2" x 5" | 5/8" x 2" | 5/8" x 5" |
| 1/2" x 2-1/2" | 1/2" x 6" | 5/8" x 2-1/2" | 5/8" x 6" |
| 1/2" x 3" | 1/2" x 7" | 5/8" x 3" | 5/8" x 7" |
| 1/2" x 3-1/2" | 1/2" x 8" | 5/8" x 3-1/2" | 5/8" x 8" |
| Lengths given are measurements between shoulder and lock, plus 1/8" clearance. | |||
