ROWPU
All Trailers
Click Image to Enlarge
| Specifications | |

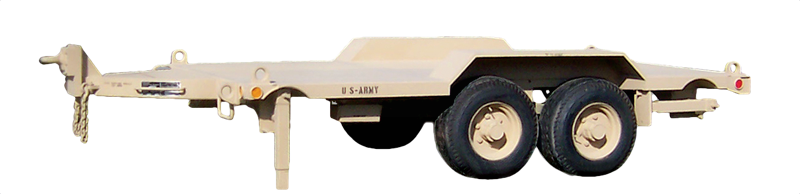

| Model | Trailer, Flatbed, 5-Ton: 600 GPH ROWPU |
| NSN Number | NSN 2330-01-266-0709 |
| GVWR | 15,595 Lbs. |
| Curb Weight | 5,595 Lbs. |
| Tires | 12x16.5 LT Tubeless |
| Wheels | 8.25x20 Steel 6-Hole |
| Dual Axles | 20,000 Lbs. Rating |
| Suspension System | Heavy Duty Leaf Spring |
| Frame Construction | Formed Steel Channel |
| Towing Style | Lunette (Pintle Connection) |
| Landing Legs | 4, One at Each Corner Beneath Trailer Deck |
| Brake System | Air |
| Lights and Service | Military Style 24 Volt System |
| Cargo Tie-Downs | MIL-STD-209 |
| Width | 96" |
| Length | 228" |
| Height | 38.16" To Top of Fenders |
| Transportability | MIL-STD-1366 |
| Environmental Corrosion | MIL-DTL-53072 (CARC Paint) |
| Prime Mover Towing | Pintle Connection |
