H Pole Trailer
All Trailers
Click Image to Enlarge

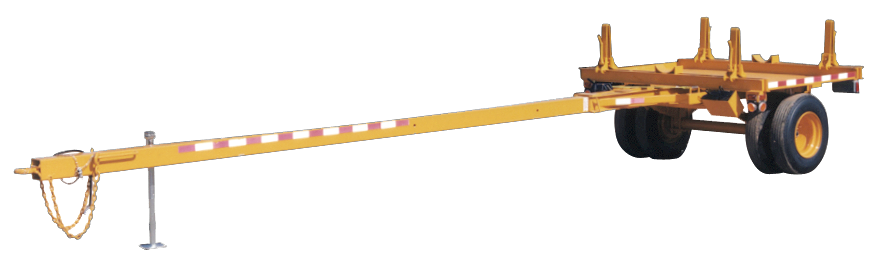

Our 5-ton capacity extendable pole trailer is designed to transport single or multiple poles of all sizes and lengths. Comes complete with four sliding stanchions.
| Specifications | |
| Payload | 15,000 lbs. |
| GVWR | 12,000 lbs. |
| Length Overall | 23'6" Extended, 14'6" Retracted |
| Width Overall | 95 1/2" |
| Brakes | Electric |
| Axle | Single, 15,000 lbs. |
| Tires | 9R 17.5 14-ply |
| Tongue Jack | Crank-Type |
| Towing Eye | Forged Steel, 2 5/8" I.D. 1 1/4" Stock |
| Lighting | Per FMVSS # 108 |
| Paint Finish | Safety Yellow |
| Safety Chains | 3/8" w/ Safety Hooks |
| Chock Block Holder & Chocks | Standard |
| Solar Battery Box & Battery | Standard |
| Options |
| Tool Box |
| 6' Longer Tongue |
| Load Binder on Tongue |
| Full Width Cargo Floor |
| Pole Cradle or Bolster Assembly |
| Mud Flaps |
| Pole Cradle/Bolster Assemblies |
| Additional Features | |
| 4 Sliding Stanchions | Standard |
| Frame | 6" Channel |
| Nylon Hold-Downs | Yes |
| Tongue | 6" Square, 1/4" Wall |
| Tongue Track | 71" |
| Width of Bolsters | 95 1/2" |
| Bolster Spacing | 72" |
| Height with Stanchions | 61" |
| Height to Bolsters | 42" |
| Clearance Between Frame | 39" |
